Display + Touch
LCD flex connector with TSC2007IPWR capacitive touch controller on shared I2C bus.
OPEN SOURCE HARDWARE // SOLANA

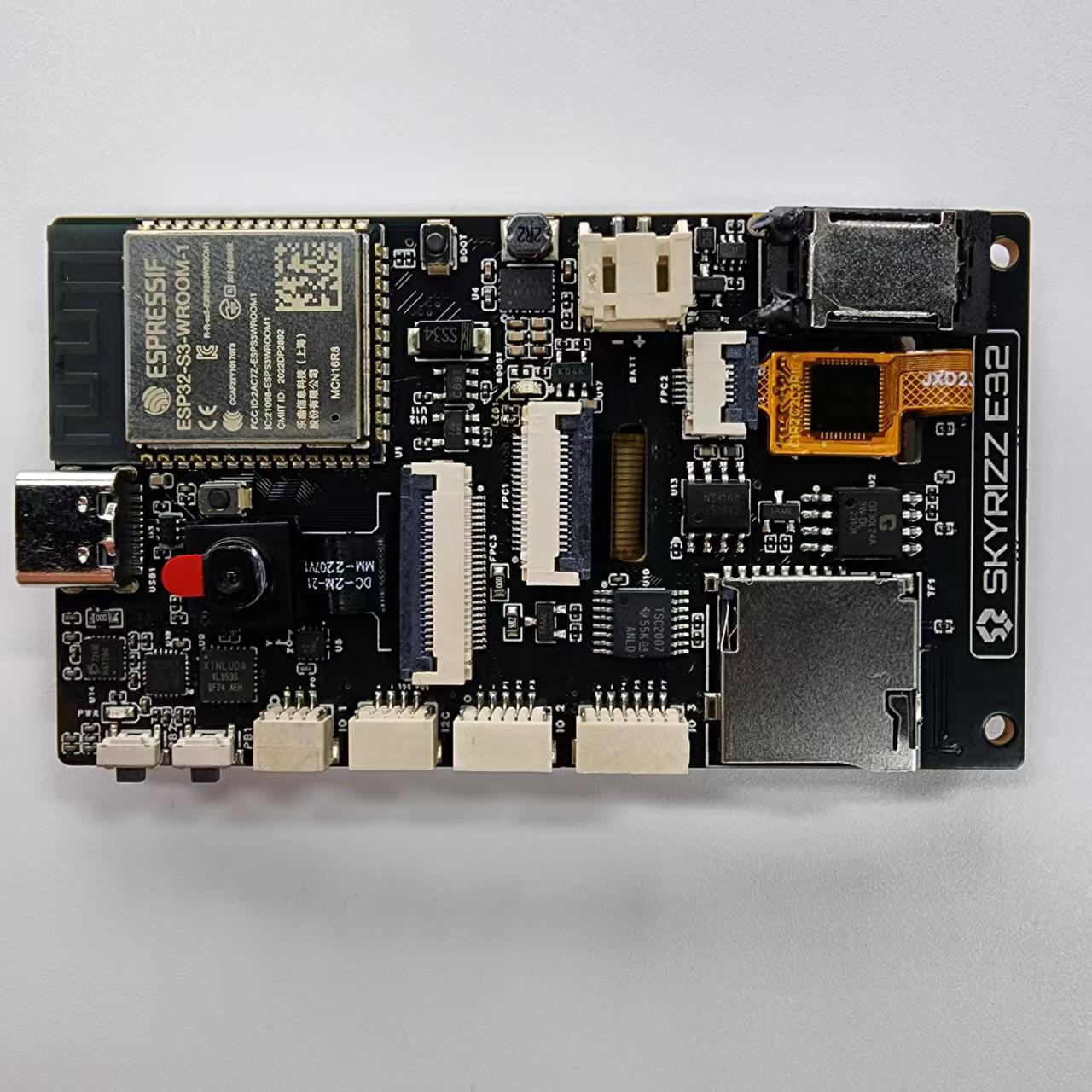

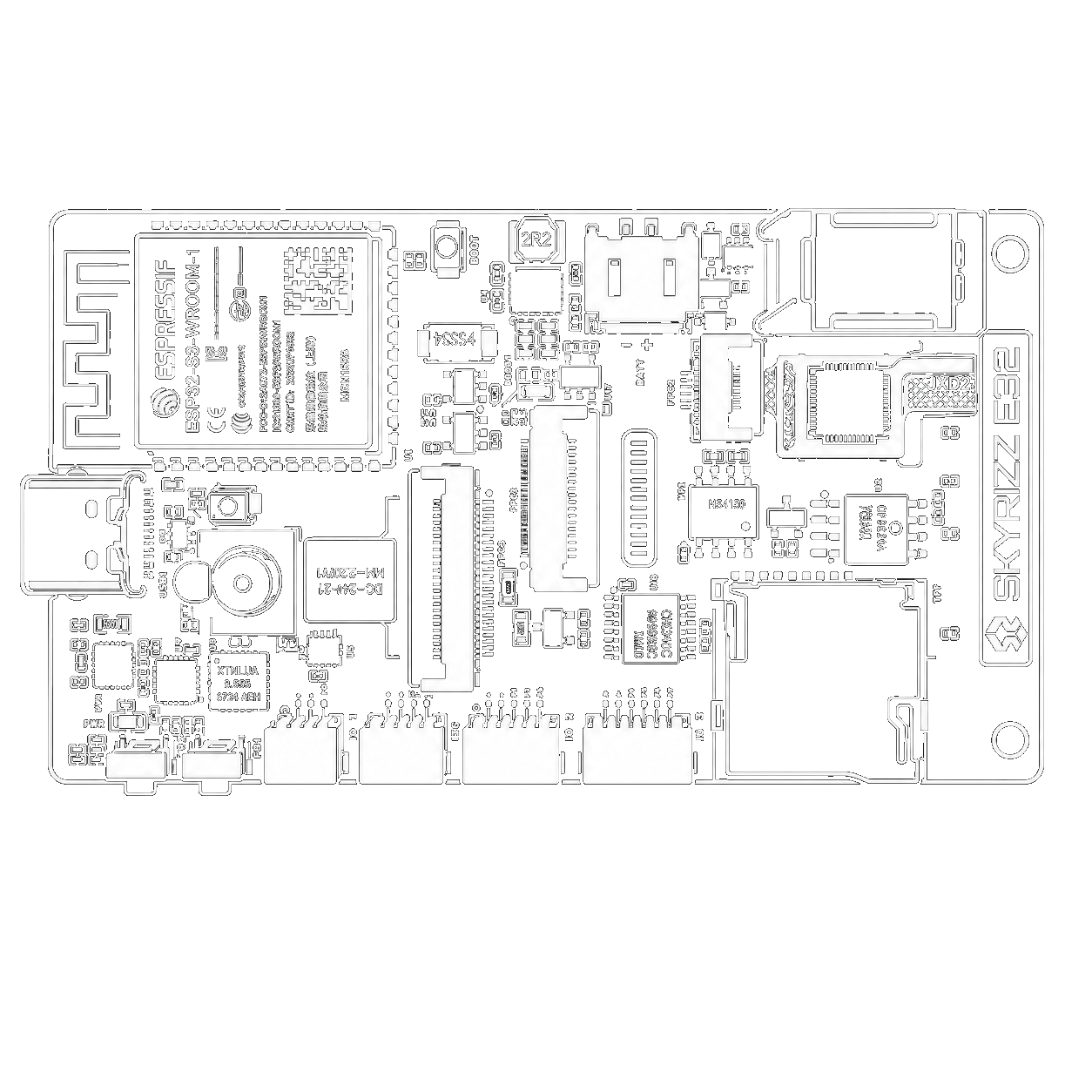

SkyRizz
E32
Hardware-ready for Solana.
Open source, by design.
Sample price
$29.00
ESP32-S3
Processor
16 MB
Flash
8 MB
PSRAM
SE050
Secure Element
Wi-Fi + BLE
Connectivity
$29
Sample Price
THE CORE
Built around
ESP32-S3.
The WROOM-1-N16R8 module packs 16 MB of flash and 8 MB of PSRAM onto a single, certifiable footprint. Wi-Fi 2.4 GHz and Bluetooth LE 5.0 are built in — no external antenna, no extra chips, no surprises at assembly.
Designed for Rust or C firmware targeting Solana signing, IoT telemetry, and secure BLE peripherals — straight out of the box.
MODULE
ESP32-S3
SE050C2HQ1
NXP Semiconductors
Secure
SECURE ELEMENT
Keys that never
leave silicon.
The NXP SE050 secure element moves cryptographic operations off-chip into tamper-resistant hardware. Private keys are generated and stored inside the element — they are never exposed to the application processor, not during signing, not ever.
Purpose-built for Solana transaction signing, hardware wallets, and applications where key compromise is simply not an option.
PERIPHERALS
Everything wired up.
Already documented.
Display, touch, camera, audio, storage — all connected and referenced in the public hardware package. Ship the feature, not the breakout board.
Camera
Dedicated connector for image capture and computer vision, pinout-ready for standard OV modules.
Audio I/O
ES7243E ADC, NS4168 power amplifier, and dual onboard MEMS microphones for voice applications.
microSD
TF1 socket for data logging, firmware assets, and SPIFFS-compatible local storage.
USB Type-C
Native USB FS on GPIO19 and GPIO20. No CP2102. No FTDI. Direct chip access, zero latency penalty.
Expansion I/O
Direct GPIO breakout, shared I2C bus, and XL9535-backed IO2/IO3 headers for external peripherals.
ONBOARD SENSORS
Built-in awareness.
No extra boards.
Three sensors ship on the board itself — temperature and humidity, ambient light, and a 3-axis accelerometer. Enough context-awareness to build responsive applications without stacking breakout boards.
All three share the onboard I2C bus, leaving your expansion headers free for whatever the project demands.
TEMP / HUMIDITY
AHT20
AMBIENT LIGHT
LTR-303ALS
ACCELEROMETER
SC7A20HTR
SHARED I2C BUS
FULL SPECIFICATIONS
Every component,
accounted for.
| Processor | ESP32-S3-WROOM-1-N16R8 |
|---|---|
| Flash | 16 MB |
| PSRAM | 8 MB |
| Wireless | Wi-Fi 2.4 GHz + Bluetooth LE 5.0 |
| Secure Element | NXP SE050C2HQ1/Z01SDZ |
| Display | LCD flex connector + TSC2007IPWR touch controller |
| Audio | ES7243E ADC, NS4168 amplifier, dual MEMS microphones |
| Sensors | AHT20 (temp/humidity), LTR-303ALS-01 (light), SC7A20HTR (accel) |
| Storage | microSD TF1 socket + GT30L24A3W SPI ROM/font chip |
| USB | USB Type-C, native FS on GPIO19/GPIO20 |
| Expansion | IO1 direct GPIO, I2C breakout, XL9535-backed IO2/IO3 |
| Camera | Dedicated connector, standard OV-series compatible pinout |
| Source Files | EasyEDA Pro project archive (public) |
| License | Open source — schematic, PCB, BOM, pinout on GitHub |
OPEN SOURCE
The full design
package. On GitHub.
Everything you need to understand, reproduce, or build on the E32 — schematics, layout exports, BOM, EasyEDA Pro source, and firmware-facing pinout references. All public. All free.
github.com/SkyRizzAI/SkyRizz-E32 →
SkyRizzAI / SkyRizz-E32
- DIR PCB/
- ├── schematic.pdf
- ├── layout_export.json
- ├── bom.csv
- ├── pick-and-place.csv
- └── skyrizz-e32.eprj
- DIR PCB/pinout/
- ├── pin_map.rs
- └── pin_capabilities.rs
- DIR assets/

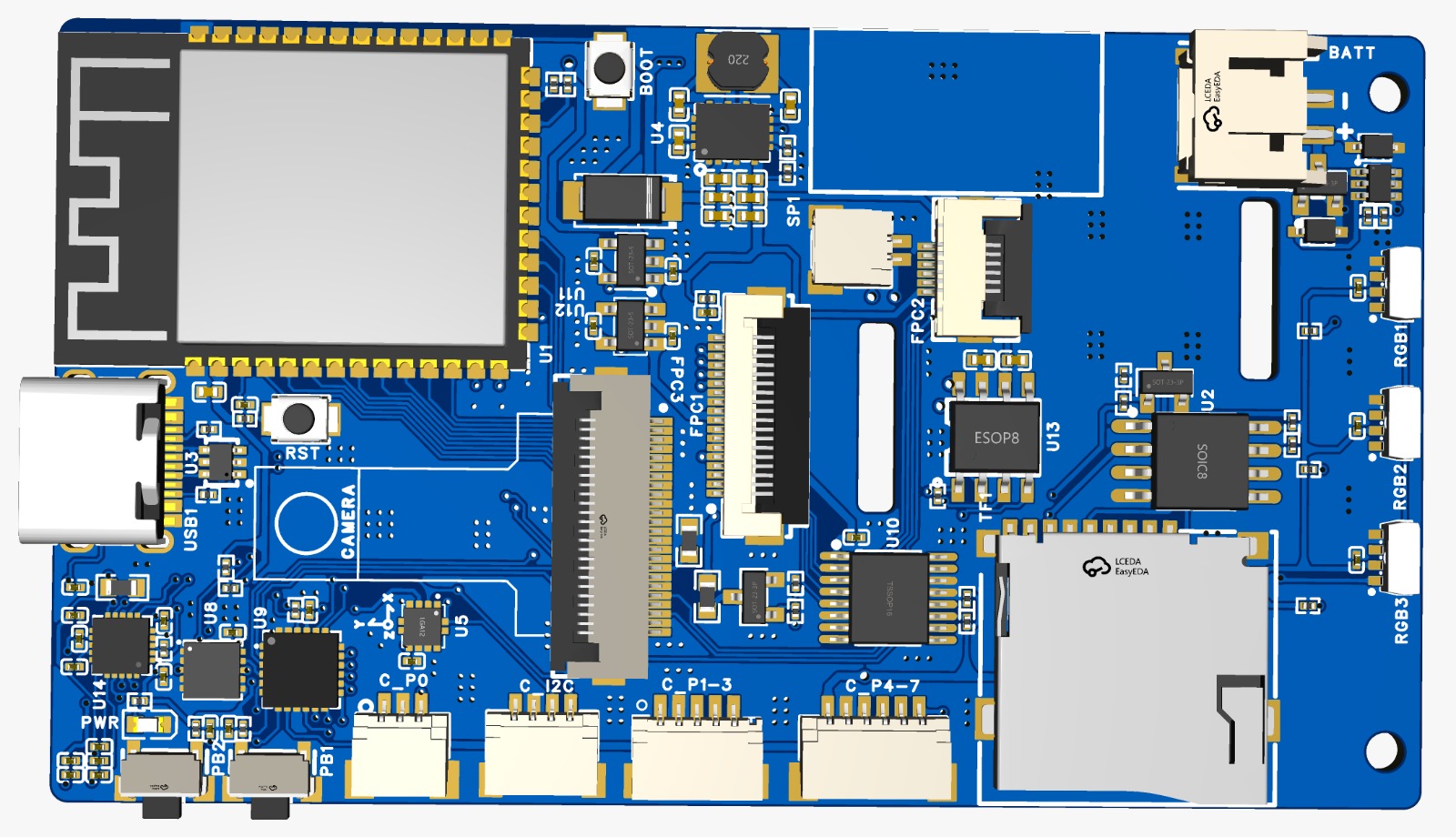

- └── renders + prototype photos
GET STARTED
Build something real
on Solana hardware.
Request your E32 sample board. We'll follow up with lead time, pricing, and order details.
